Cabinet Size: 500x500x75/500x1000x75mm
Pixel Pitch: 2.84/3.9/4.81/5.682/6.25mm
Brightness Intensity: ≥800, ≥1200, ≥1500CD/m²
IP Rating (front/back): IP30
Max.Power Consumption: 650, 716, 582, 493, 448W/m²
Ave.Power Consumption: 218, 238, 194, 164, 150W/m²
GET A QUOTE
| Module Specifications | |||||
| Part Number | P2 | P2.5 | P3 | P4 | P5 |
| Pixel Pitch | 2mm | 2.5mm | 3mm | 4mm | 5mm |
| Module Size | 320X160mm | 320X160mm | 320X160mm | 320X160mm | 320X160mm |
| LED Configuration | SMD | SMD | SMD | SMD | SMD |
| Cabinet Specification | |||||
| Cabinet Size | 800x800x80mm | 800x800x80mm | 800x800x80mm | 800x800x80mm | 800x800x80mm |
| Resolution | 88x88dot | 64x64dot | 52x52dot | 44x44dot | 40x40dot |
| Cabinet Weight | 35kg | 35kg | 35kg | 35kg | 35kg |
| Main Parameter | |||||
| Pixel Density | 250000dot/m² | 160000dot/m² | 111111dot/m² | 62500dot/m² | 40000dot/m² |
| Brightness Intensity | ≥800CD/m² | ≥1100CD/m² | ≥1100CD/m² | ≥2000CD/m² | ≥2000CD/m² |
| Gray Scale | 13bit | 13bit | 13bit | 13bit | 13bit |
| Display Scale | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Refresh Frequency | ≥1200HZ | ≥1200HZ | ≥1200HZ | ≥1200HZ | ≥1200HZ |
| Environmental | INDOOR | INDOOR | INDOOR | INDOOR | INDOOR |
| IP Rating(front/back) | IP30 | IP30 | IP30 | IP30 | IP30 |
| Viewing Angle (H/V) | 120° | 120° | 120° | 120° | 120° |
| View Distance | >2m | >2.5m | >3m | >4m | >5m |
| Max.Power Consumption | 670W/m² | 480W/m² | 430W/m² | 410W/m² | 380W/m² |
| Aue.Power Consumption | 223W/m² | 160W/m² | 160W/m² | 160W/m² | 160W/m² |
| Brightness Adjustment | 0 – 100 levels adjustable | ||||
| Control Mode | Synchronous display with control PC by DVI | ||||
| Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | ||||
| Operation Power | AC100/220V 50/60HZ | ||||
| Operating Temperature | -20℃~+50℃ | ||||
| Operating Humidity | 10~95% RH | ||||
| Operating Life | 100,000hours | ||||
Application:

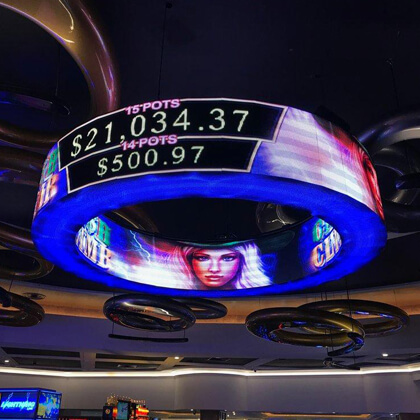

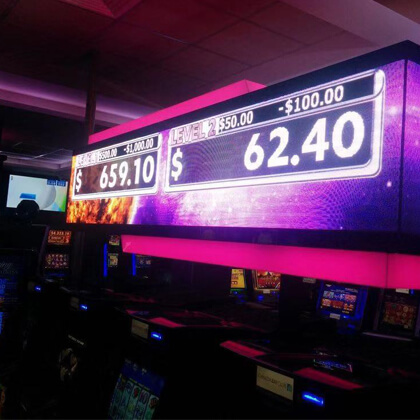

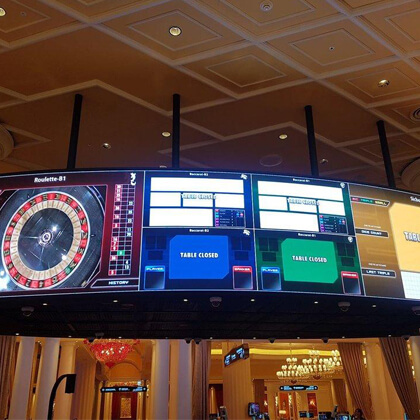

casino
Seamless Connection:
> Seamless connection with high flatness and soft image.
> Accurate and flexible installation, Buckle design for the sides to realize quickly install and disassemble.
> Professional and standard air plug with a high-quality guarantee.
Advantages:
> Thin and Light Cabinet.
> Simple, super thin and lightweight design, easy to install and transport.
> Without a fan, zero noise, low power consumption, automatic heat dissipation.
> High definition and exquisite image.
> Small-pitch series obtain high contrast and high grayscale, It can realize the HD and exquisite image.
> Support pixel-to-pixel calibration, to ensure the color and brightness consistency.
> Exquisite color, clear and natural image with excellent RGB gray scale processing.
