Pixel Pitch (mm): 3/4/5/6mm
Cabinet Size: 820x1600x80mm/800x1600X120mm/768x1600X130mm
Resolution/sqm: 250000/160000/111111
IP Rating (front/back): IP65
Maximum Brightness: 4500CD/m², 5000CD/m²
Ave.Power Consumption: 150W
GET A QUOTE
| Outdoor HD LED Poster Display 2 | ||||
|---|---|---|---|---|
| Module Specifications | ||||
| Part Number | A78-3IA | A78-3OA | A82-4IA | A82-4OA |
| Pixel Pitch (mm) | 3mm | 3mm | 4mm | 4mm |
| LED Configuration | 1R1G1B SMD2020 | 1R1G1B SMD2020 | 1R1G1B SMD2020 | 1R1G1B SMD2020 |
| Module size | 256x128mm | 256x128mm | 128x128mm | 128x128mm |
| Module Resolution | 64x32dot | 64x32dot | 32x32dot | 32x32dot |
| Cabinet Specifications | ||||
| Cabinet Size | 1020x2180x85mm | 1020x2180x85mm | 1085x2190x85mm | 1085x2190x85mm |
| Cabinet Resolution | 320x576dot | 320x576dot | 256x448dot | 256x448dot |
| Cabinet Weight | 140kg | 140kg | 140kg | 140kg |
| Main Parameter | ||||
| Pixel Density | 111111dot/m² | 111111dot/m² | 62500dot/m² | 62500dot/m² |
| Size | 60 inches | 60 inches | 60 inches | 60 inches |
| Display Area | 78 inches | 78 inches | 82 inches | 82 inches |
| IP Rating (front/back) | IP65 | IP65 | IP65 | IP65 |
| Scanning Mode | 16S | 16S | 8S | 8S |
| Brightness Intensity | ≥1500CD/m² | ≥4000CD/m² | ≥4000CD/m² | ≥4000CD/m² |
| Viewing Angle | 120° | 120° | 120° | 120° |
| View Distance | >4m | >4m | >5m | >5m |
| Gray Scale | 14bit | 14bit | 14bit | 14bit |
| Display Scale | 16.7M | 16.7M | 16.7M | 16.7M |
| Max.Power Consumption | 1000W/m² | 1000W/m² | 720W/m² | 1400W/m² |
| Ave.Power Consumption | 300W/m² | 300W/m² | 240W/m² | 460W/m² |
| Refresh Frequency | ≥1920HZ | ≥1920HZ | ≥1920HZ | ≥1920HZ |
| Environmental | INDOOR | OUTDOOR | OUTDOOR | OUTDOOR |
| Brightness Adjustment | 0 – 100 levels adjustable | |||
| Control Mode | Asynchronous Control | |||
| Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | |||
| Operation Power | AC100/240 50/60HZ | |||
| Operating Temperature | – 20℃~+70℃ | |||
| Operating Humidity | 10~90% RH | |||
| Operating Life | 100,000hours | |||
Intelligent Control:
HD-display, energy saving; wifi module, charging interface and GPS inside; distant and large-scale control available; smart monitor and equipped with smoke, humidity, temperature detectors; interactive voice-and-video response access.
High IP Level:
With front/back IP level 65/54.
Fashion Design:
Super thin cabinet, lightweight, stylish shape with technological and art aesthetic feeling.
Advantages:
Time and labor-saving.
The convenience of installation and maintenance, low cost.
Application:

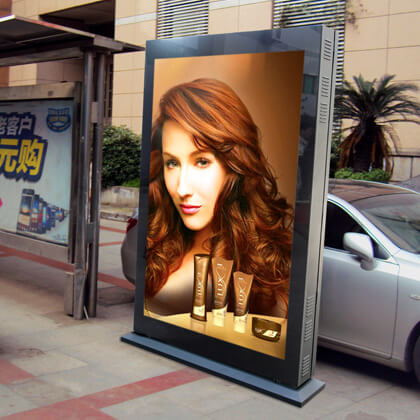

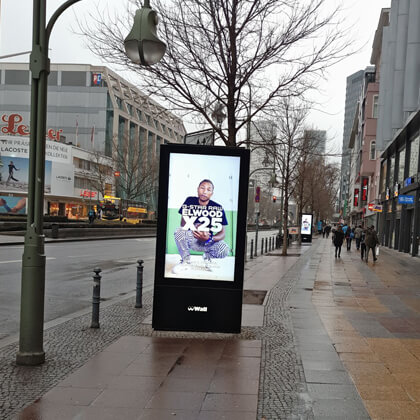

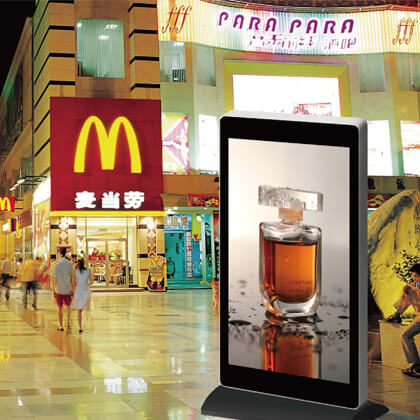

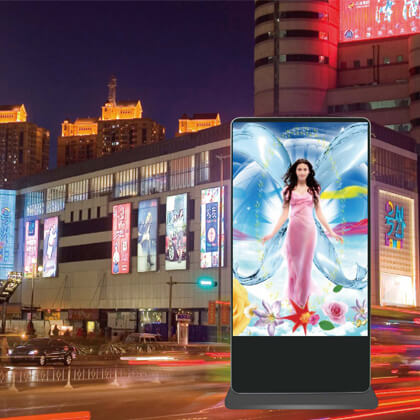

Community, walking street, school, hospital, roadside, park, supermarket, parking lot, metro station, hotel, gas station, automobile 4s shop, tourist attraction, bus station, etc.
