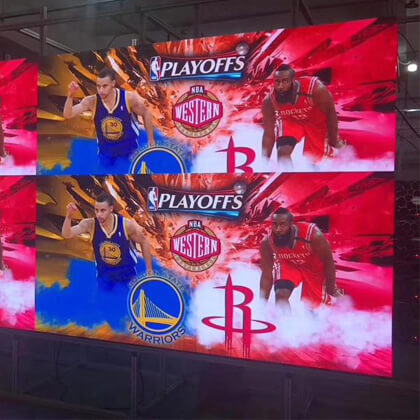

Estadio LED Display

Cabinet Size: 960×960×80mm
Pixel Pitch: 2/2.5/3/4/5/6mm
IP Rating (front/back): IP30/IP65
Max.Power Consumption: 430, 410, 380, 360, 280, 250W/m²
Ave.Power Consumption: 160W/m²

GET A QUOTE
Parameters
Module Specifications
Part Number P3 P4 P5 P6 P8 P10
Pixel Pitch 3mm 4mm 5mm 6mm 8mm 10mm
Pixel Density 111111dot/m² 62500dot/m² 40000dot/m² 27777dot/m² 15625dot/m² 10000dot/m²
Module Size 320×160mm 320×160mm 320×160mm 320×160mm 320×160mm 320×160mm
LED Configuration SMD SMD SMD SMD SMD SMD
Cabinet Specification
Cabinet Size 960x960x80mm 960x960x80mm 960x960x80mm 960x960x80mm 960x960x80mm 960x960x80mm
Cabinet Weight 35kg 35kg 35kg 35kg 35kg 35kg
Main Parameter
Gray Scale 13bit 13bit 13bit 13bit 13bit 13bit
Display Scale 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Max.Power Consumption 430W/m² 410W/m² 380W/m² 360W/m² 280W/m² 250W/m²
Aue.Power Consumption 160W/m² 160W/m² 160W/m² 160W/m² 160W/m² 160W/m²
Refresh Frequency ≥1200HZ ≥1200HZ ≥1200HZ ≥1200HZ ≥1200HZ ≥1200HZ
Environmental INDOOR/OUTDOOR INDOOR/OUTDOOR INDOOR/OUTDOOR INDOOR/OUTDOOR INDOOR/OUTDOOR INDOOR/OUTDOOR
IP Rating(front/back) IP30/IP65 IP30/IP65 IP30/IP65 IP30/IP65 IP30/IP65 IP30/IP65
Maximum Brightness ≥1100CD/m² ≥2000CD/m² ≥2000CD/m² ≥2000CD/m² ≥2000CD/m² ≥2000CD/m²
Viewing Angle (H/V) 120° 120° 120° 120° 120° 120°
View Distance >3m >4m >5m >6m >8m >10m
Brightness Adjustment 0 – 100 levels adjustable
Control Mode Synchronous display with control PC by DVI
Support Input Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power AC100/220V 50/60HZ
Operating Temperature -20℃~+50℃
Operating Humidity 10~90%RH
Operating Life 100,000hours

Application:

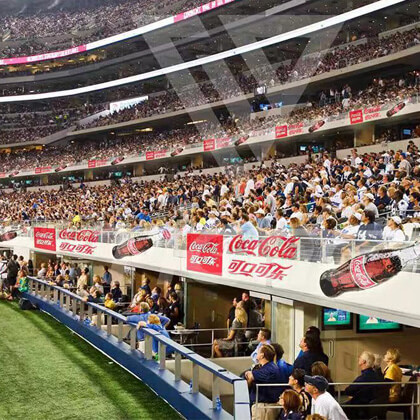

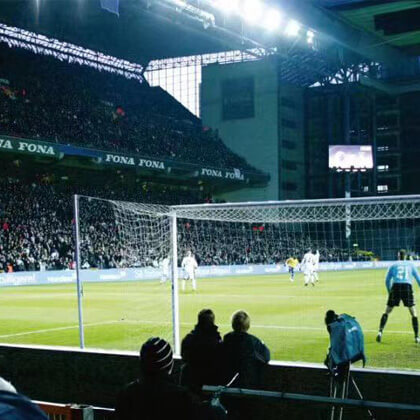

For Football field, Football, basketball, baseball, horse racing, Stadium, outdoor places or indoor.



Advantages:
> Thin and light structure design for convenient assembly.
> Super thin and light-weight cabinet, easy to install and transport, the space for the whole screen is greatly saved with thickness decrease.
> Automatic heat dissipation, and low power consumption.
> High brightness and gray level as well as high refresh rate, HD exquisite image.
> HD and exquisite image with high contrast and grayscale, to obtain the high visual quality for commercial use.
> Support Pixel-to-pixel calibration, to ensure the color and brightness consistency.
> Exquisite color, clear and natural image with excellent RGB gray scale processing.
